Unboxing Your Handset
The YEALINK W53P is one of the most popular CORDLESS handsets available.
It comes with everything you need to get you started.

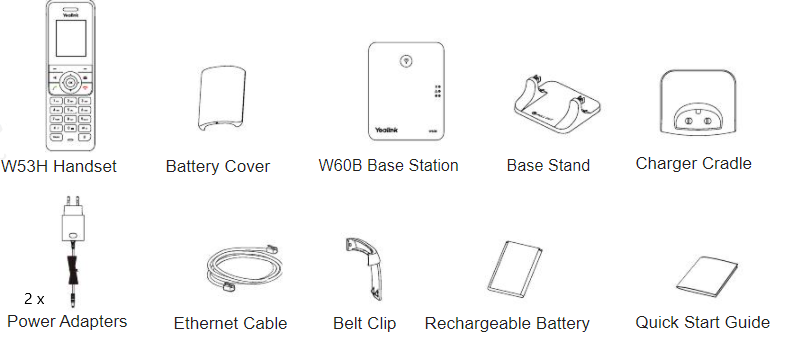

On opening the box you will find:-
Assembling your DECT Handset

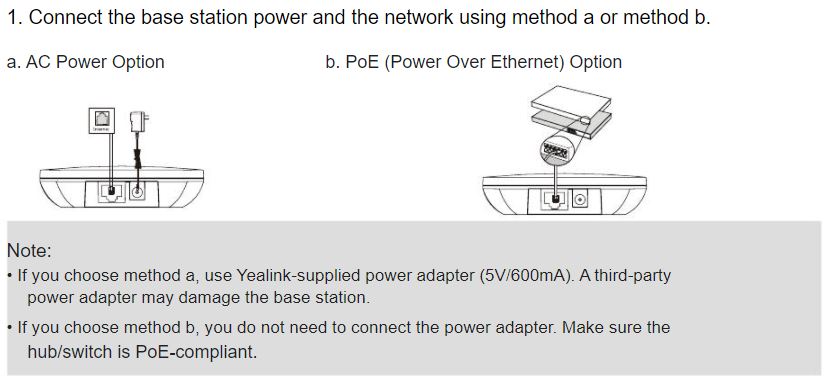

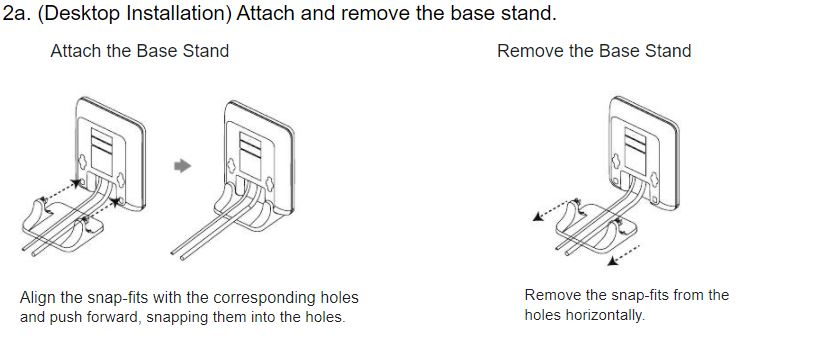

Desktop Installation of your Base Station
In most cases you will be installing your Base Station on a desk or in an office area.
It is a quick process, once you have connected your cable(s) attach the stand as pictured below.

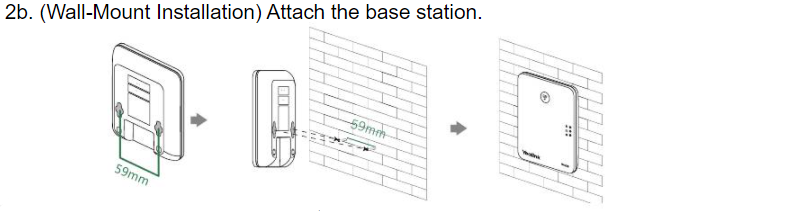

Wall Mounting of your Base Station
There may be an occasion where you may wish to mount your Base Station on the wall.
It is best to do this in conjunction with a POE switch which will only require an Ethernet cable for both power AND data.

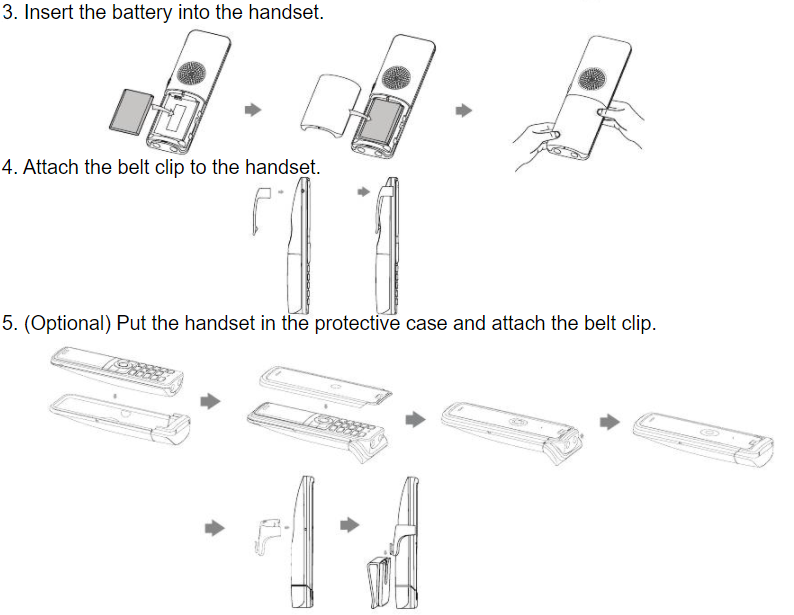

Assembling your Handset
The next step is to assemble your handset ready for use.

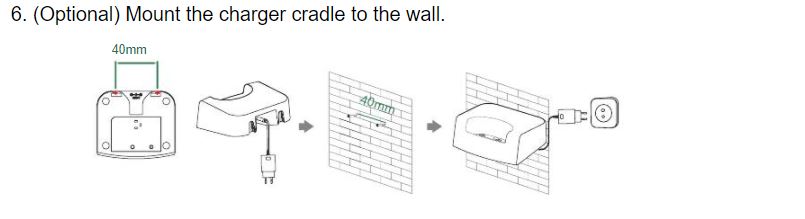

Wall Mounting the Cradle
You may wish to mount the cradle for your handset on the wall.
You can do this by following the steps pictured below.

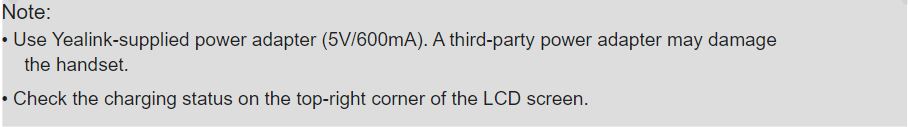

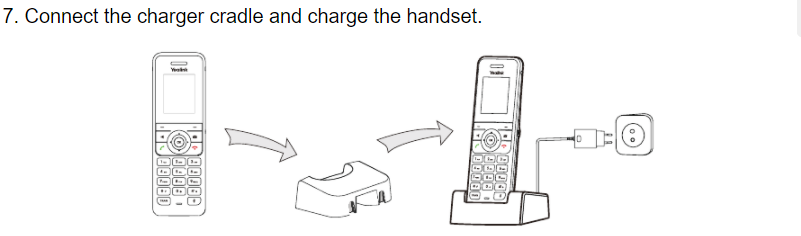

Connecting Power to the Charging Cradle
Your charging cradle will need to be connected to a mains socket, so choose a location where one is available
Once you have completed all of the above steps, your phone should be ready to use!
If all of the steps have been followed and you are having difficulties, you can raise a customer support ticket by clicking this link:- https://customersupport.org.uk/ and one of our friendly Customer Support agents will assist you.
